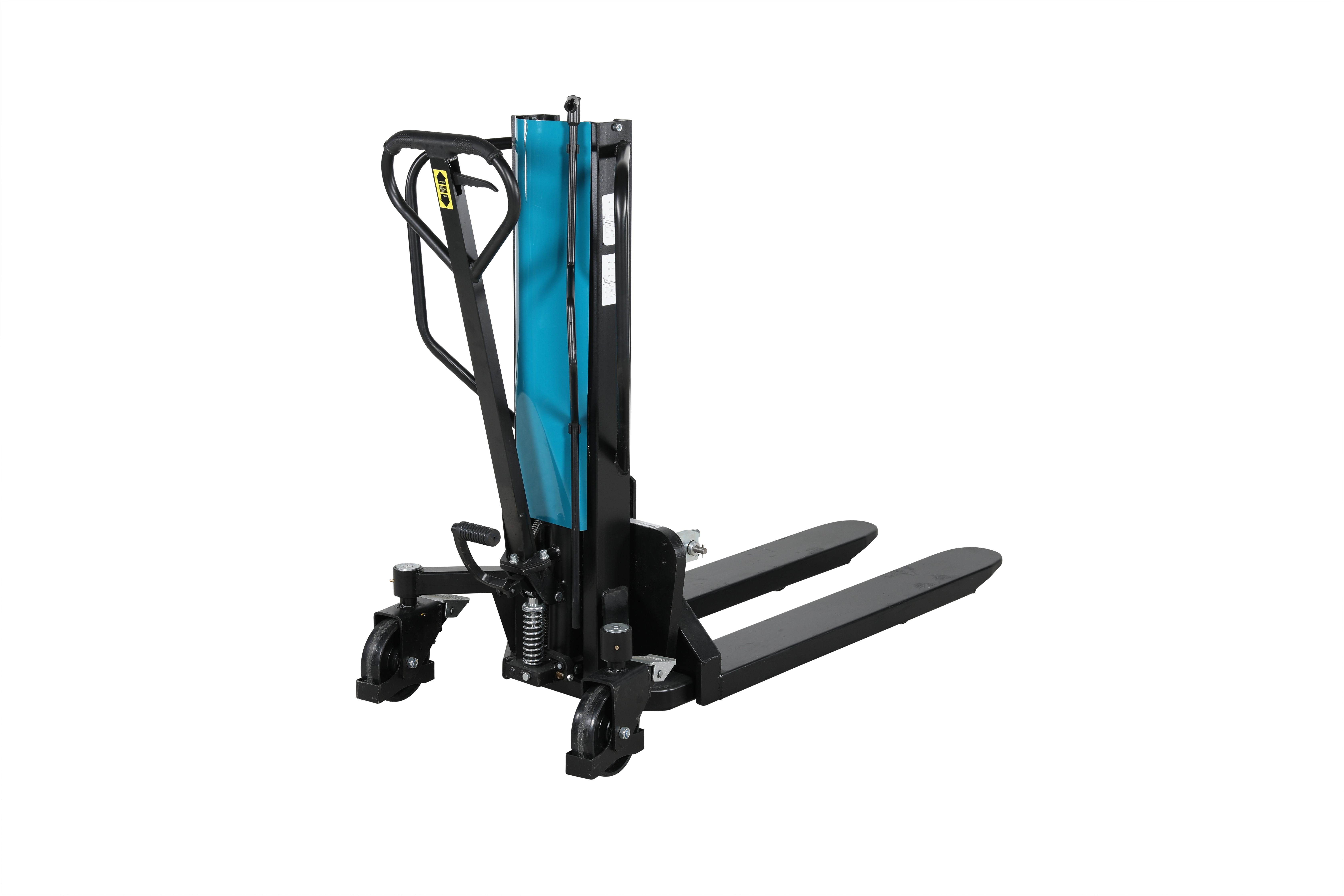

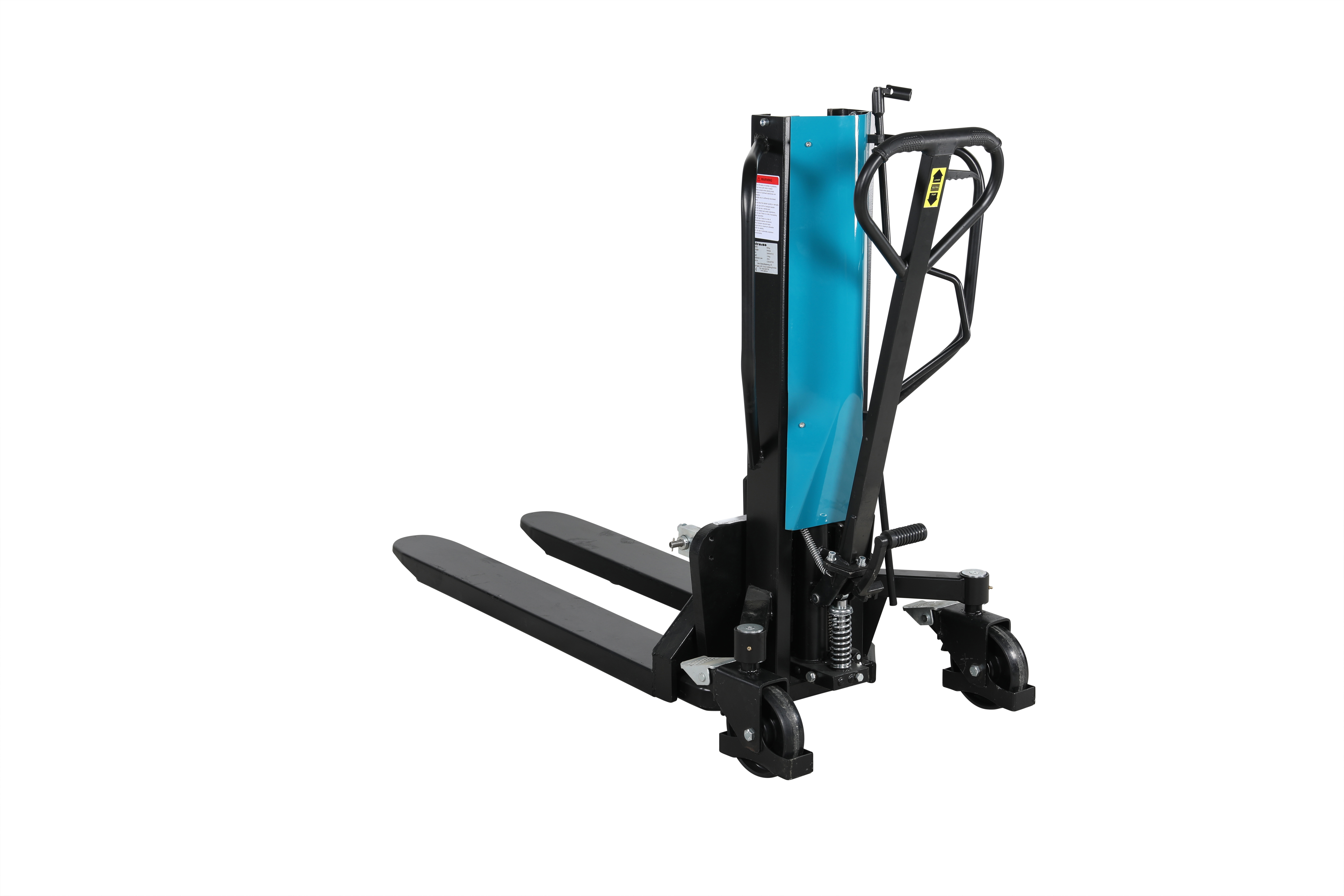

BALDER, VV 800/900 G Ergo

Article no: 1840045510

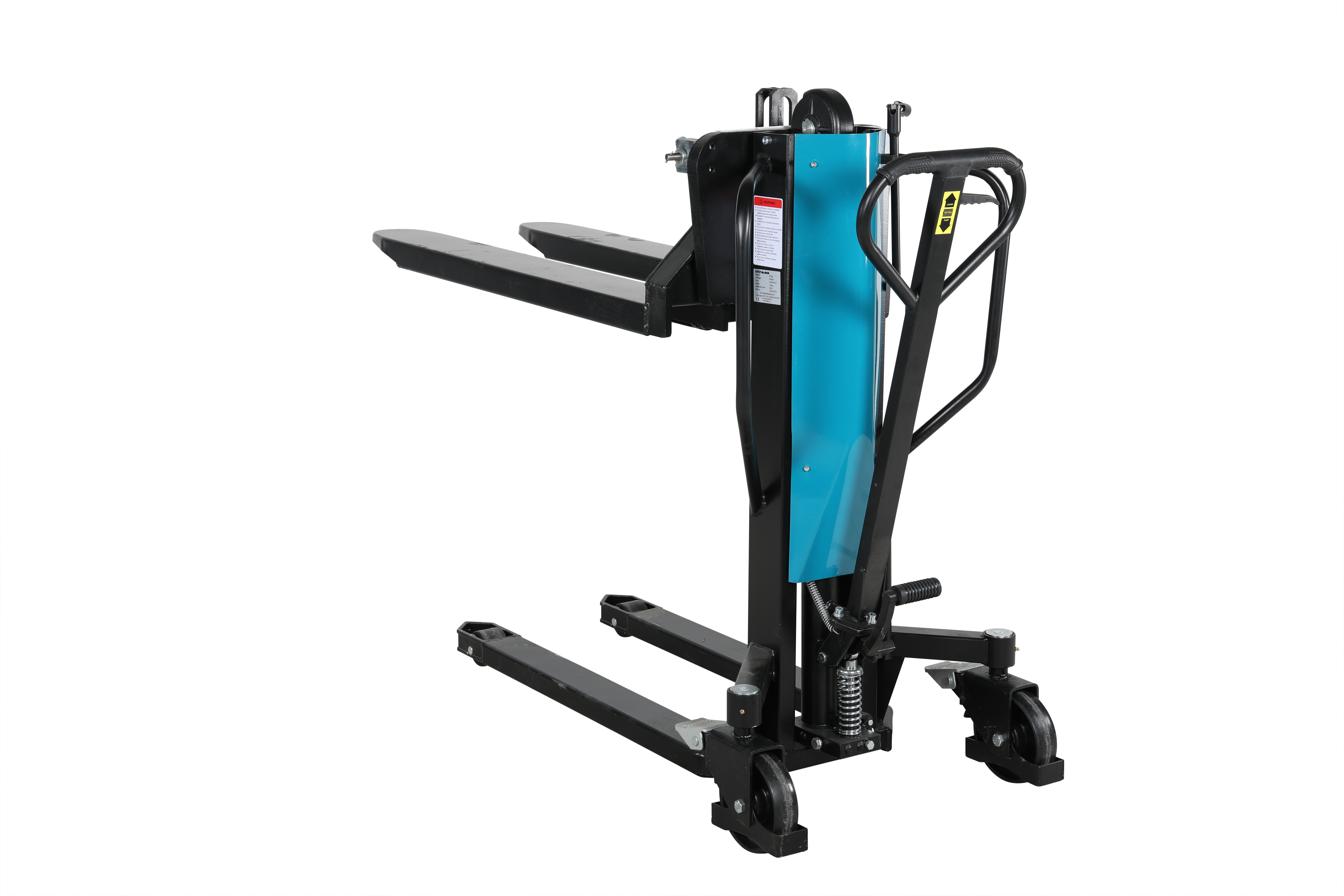

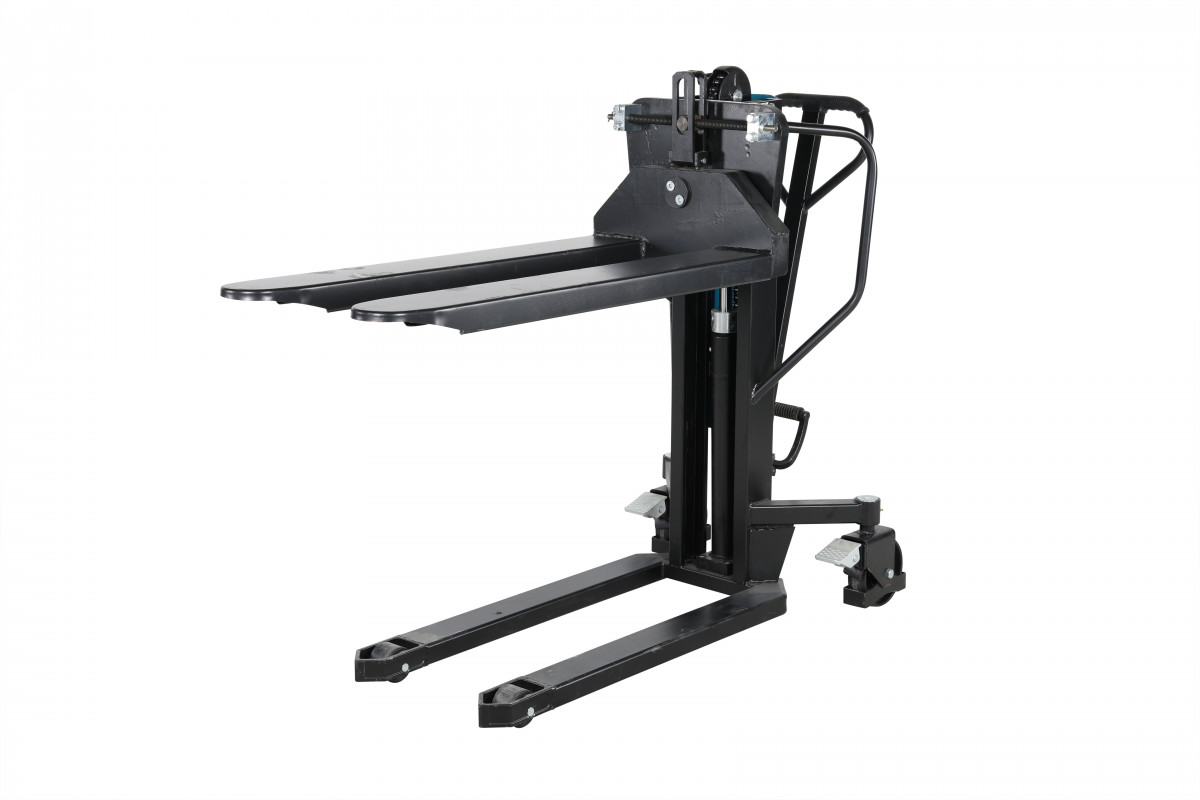

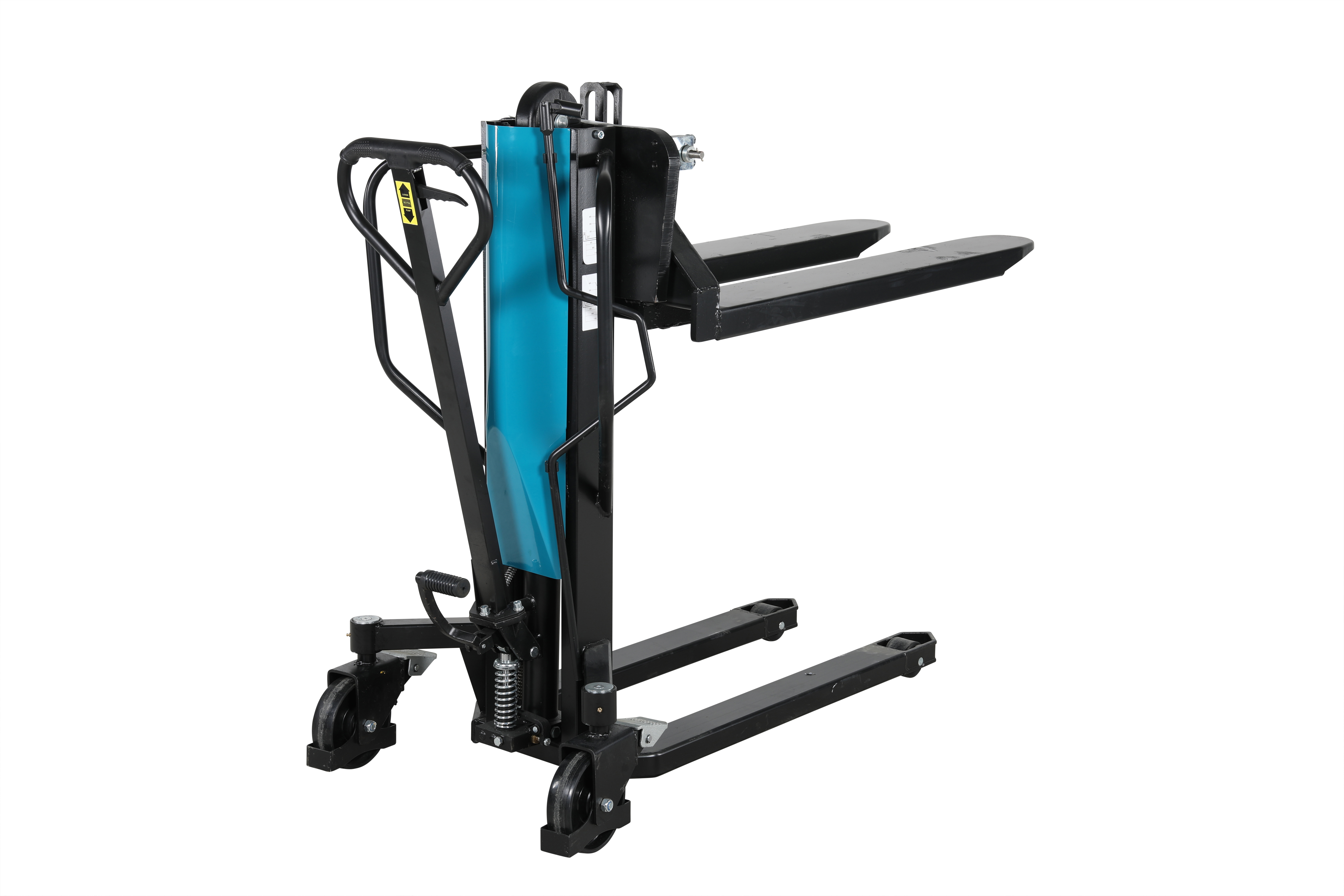

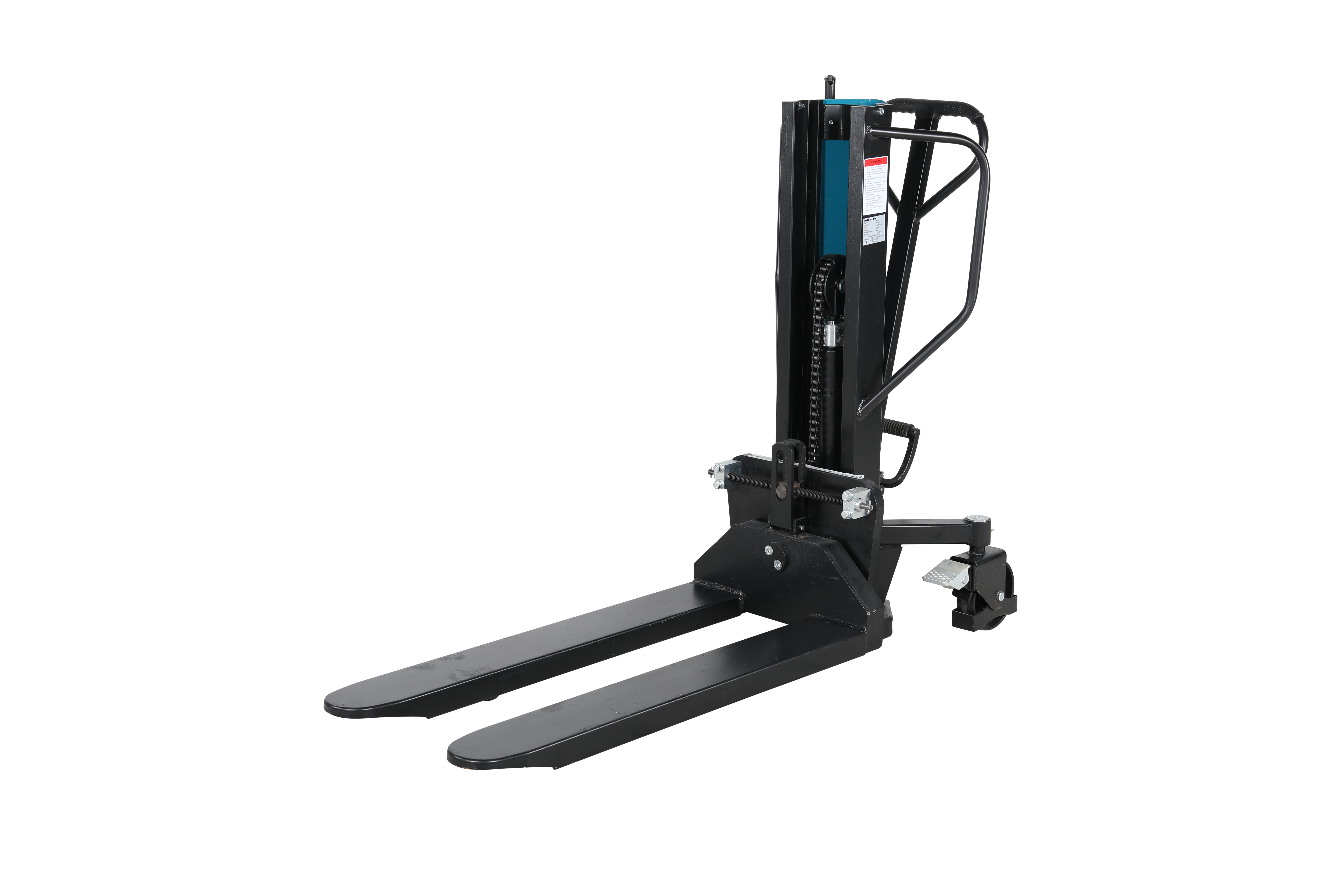

A compact stacker of a stable design with ergonomic tilt. The pallet is raised to the right work height and the sideways tilt makes the work comfortable and ergonomic. The design is very compact and is, therefore, suitable for cramped spaces.

  • -Lifting speed with load: 18 mm per pump stroke

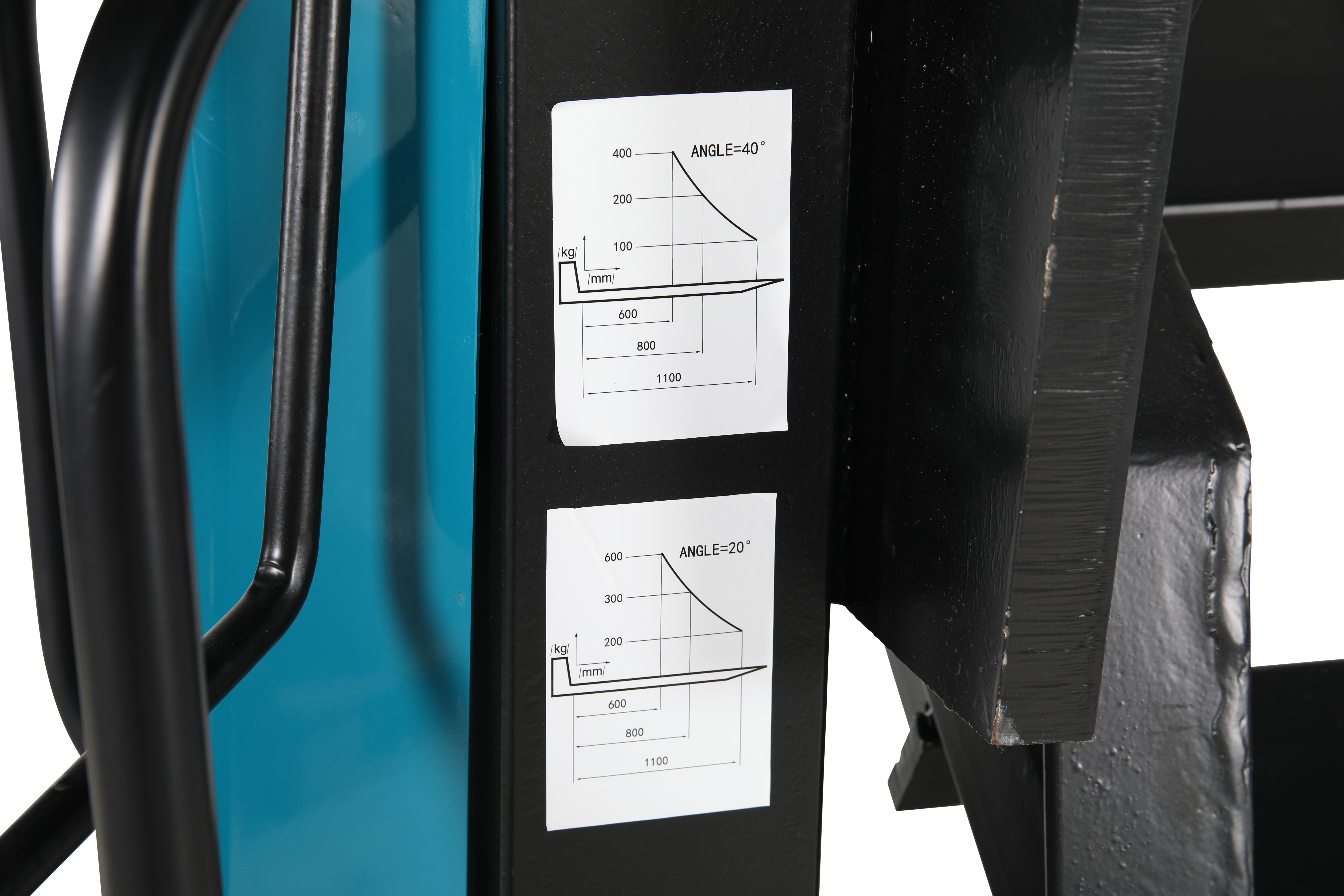

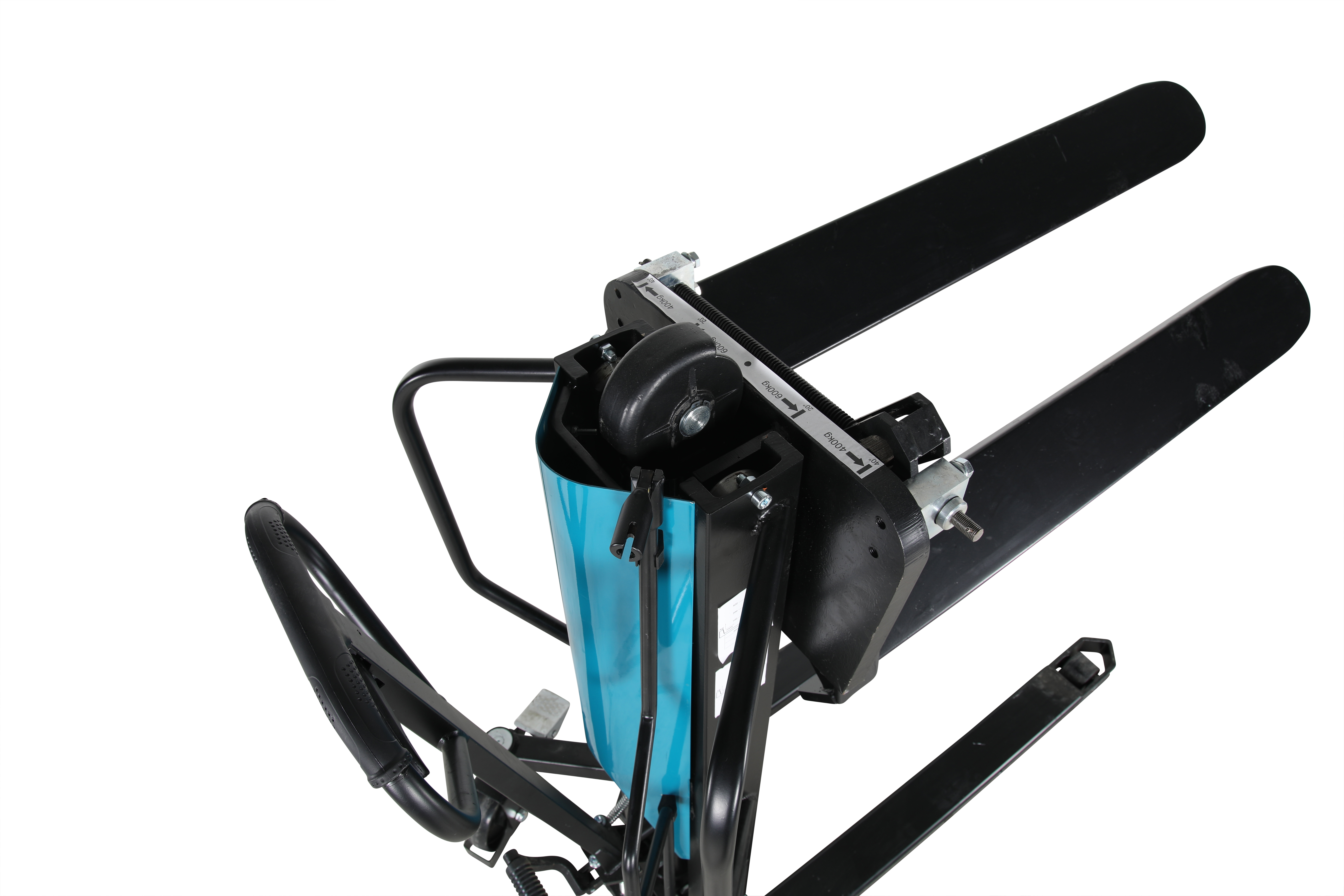

  • -Tilt angle: 40°
  • -Turn radius: 1500 mm
  • -Hydraulic oil, volume: 2 liter, viscosity: ISO VG 15

Pump type

PDF
Capacity/kg:
800 (400 when tilting)
Length / Depth (mm):
1600
Width (mm):
730
Height (mm):
1230
Fork length (mm):
1150
fork width (mm):
150
Fork height/thickness (mm):
87
Inner/other dimensions LxWxH (mm):
  • -Width between forks over outer edges: 540 mm
  • -Lift height: 87-900 mm
Weight (kg):
214
Color:
Blue (RAL 5021)/Black
Material:
Steel/Plastic

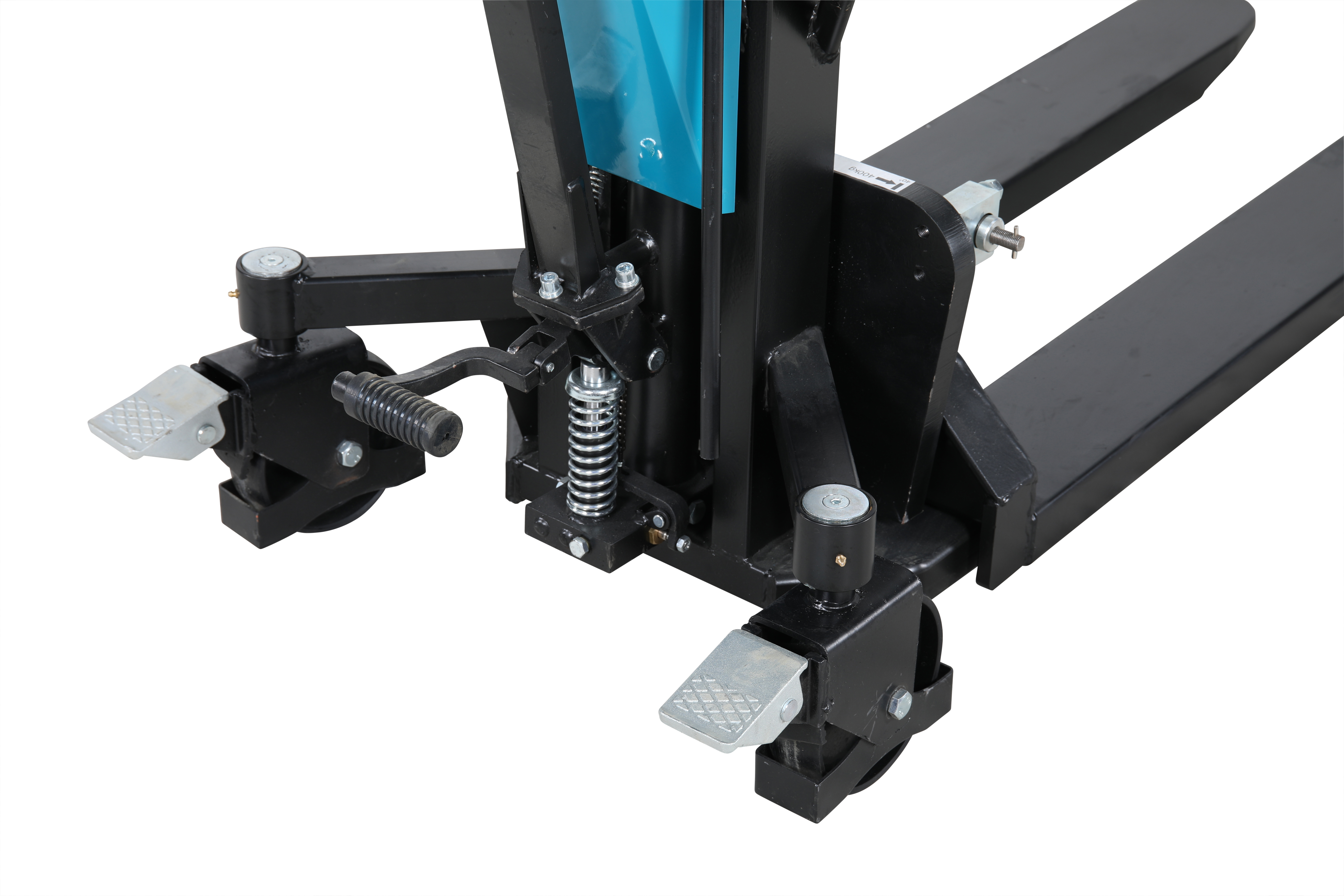

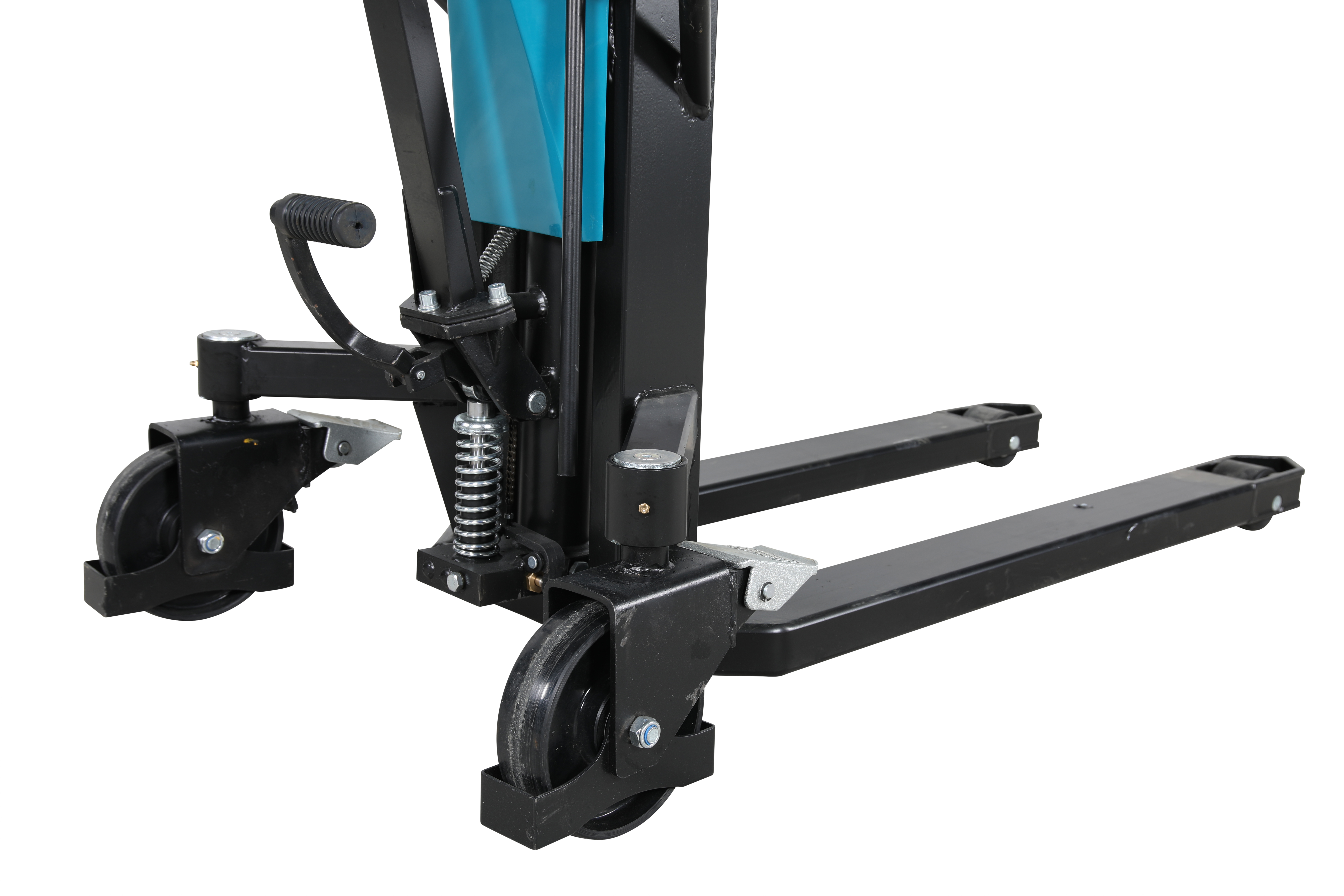

Wheel data (Standard-/Steering wheels):
  • -Material: black nylon
  • -Dimensions: 200 mm diameter, 50 mm width
Wheel data (Fork wheels):
  • -Material: black nylon
  • -Configuration: single
  • -Dimensions: 82 mm diameter, 90 mm width

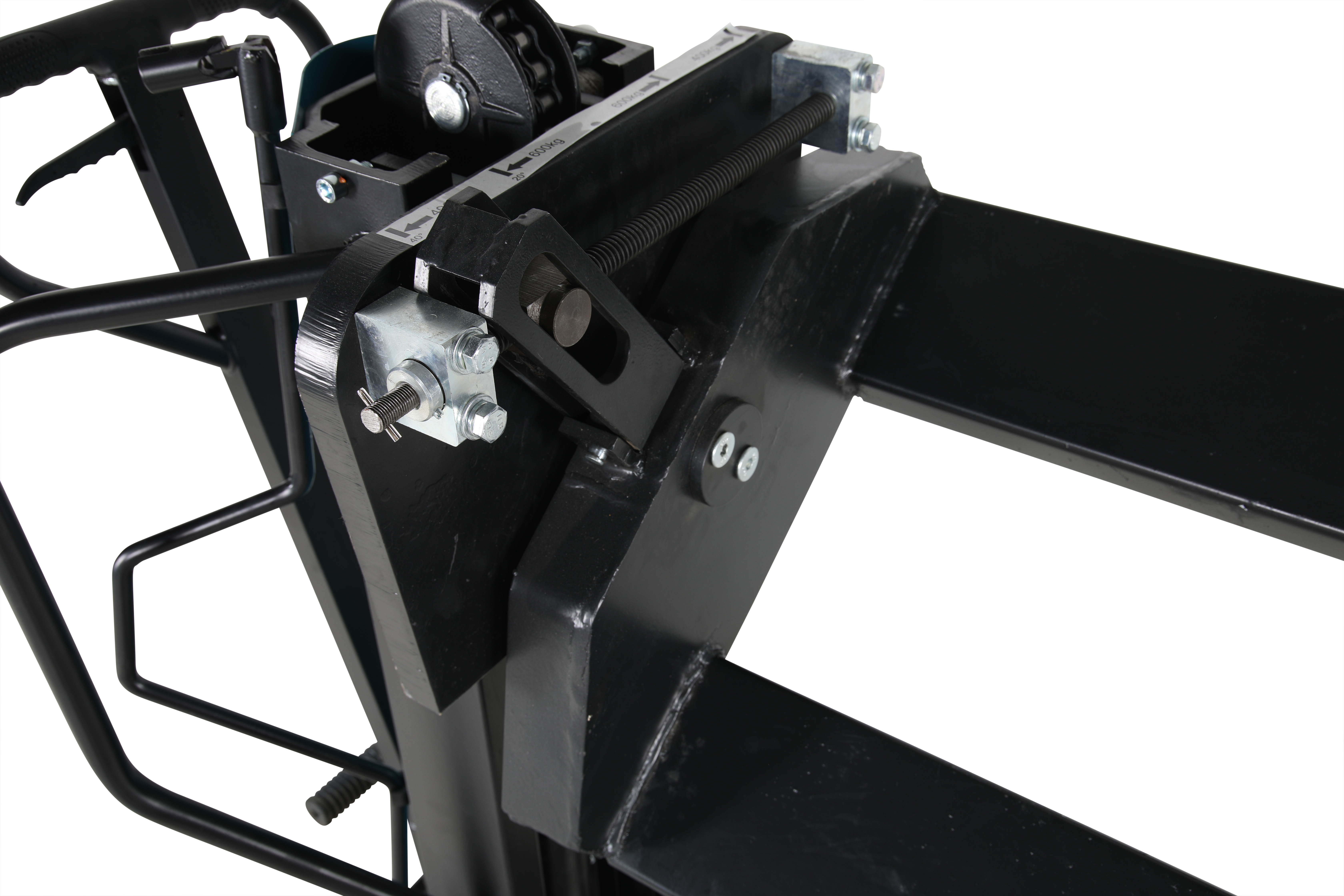

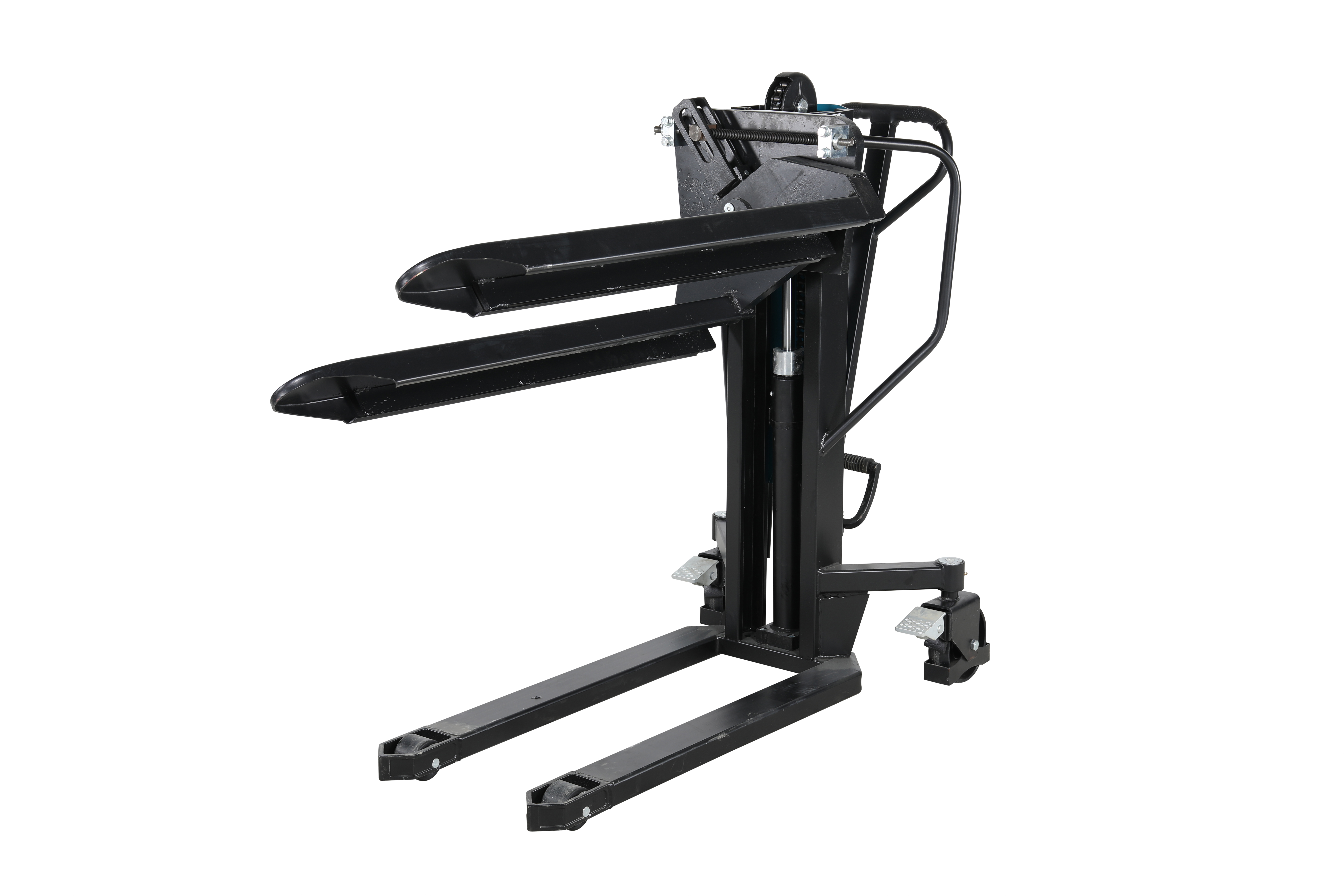

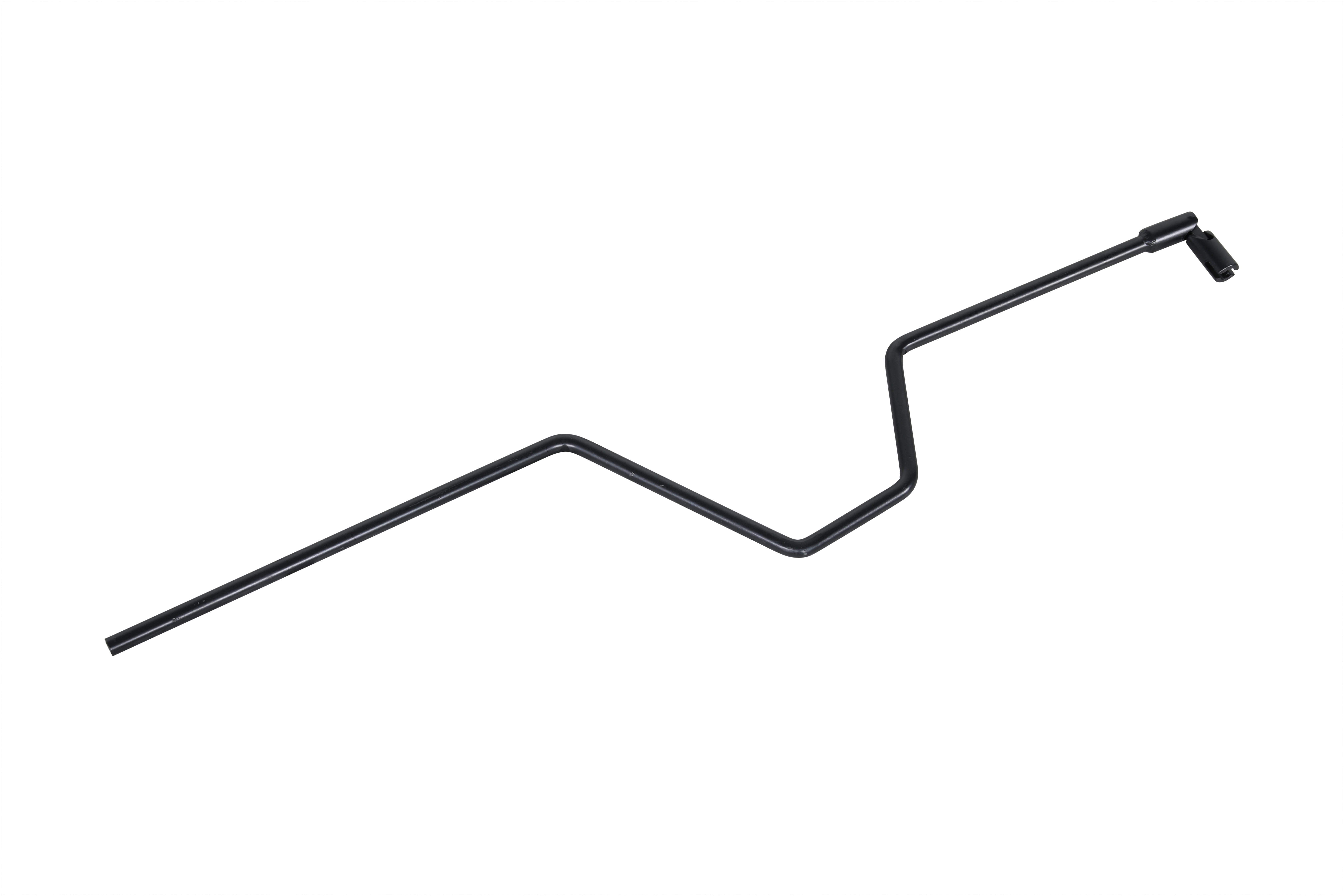

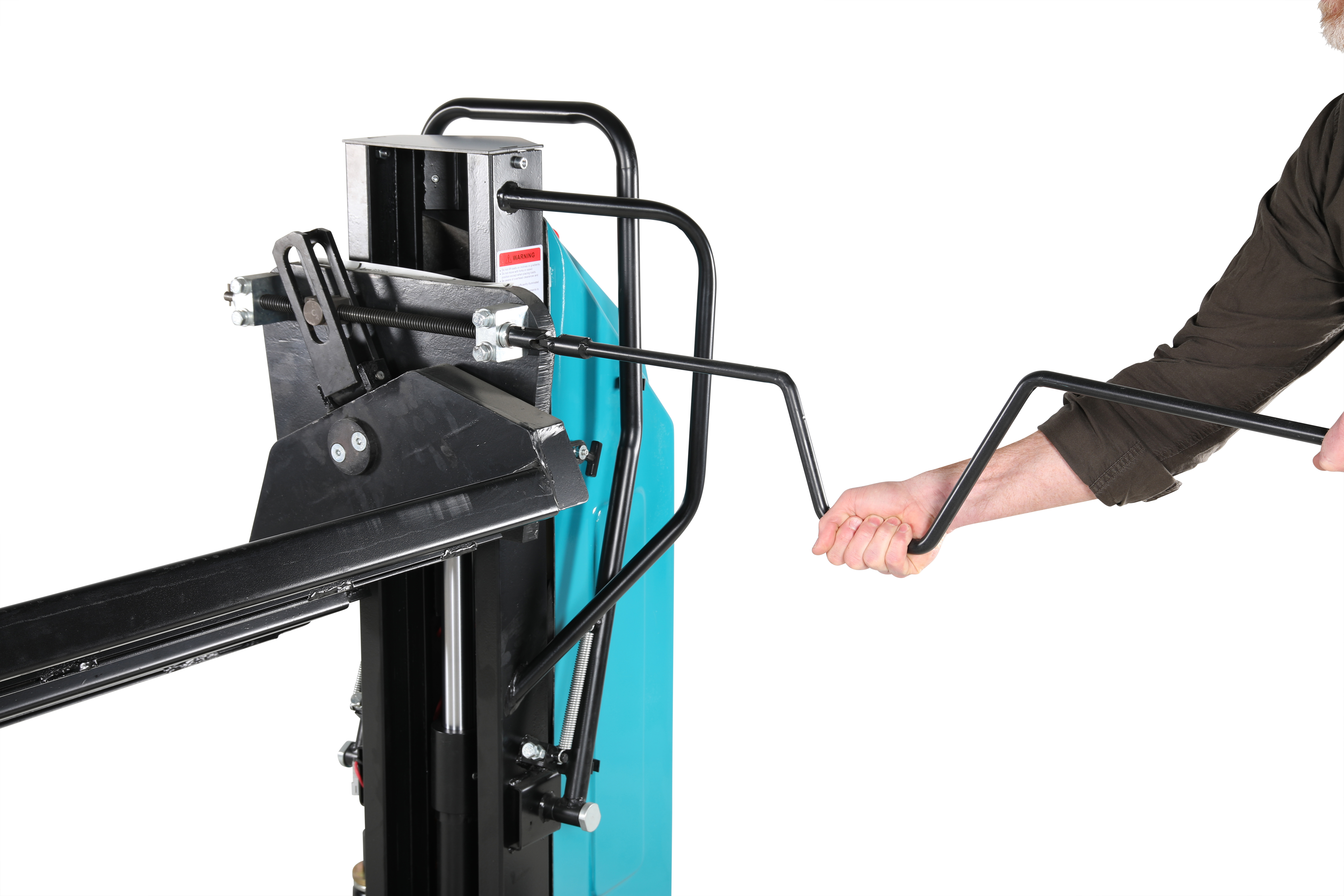

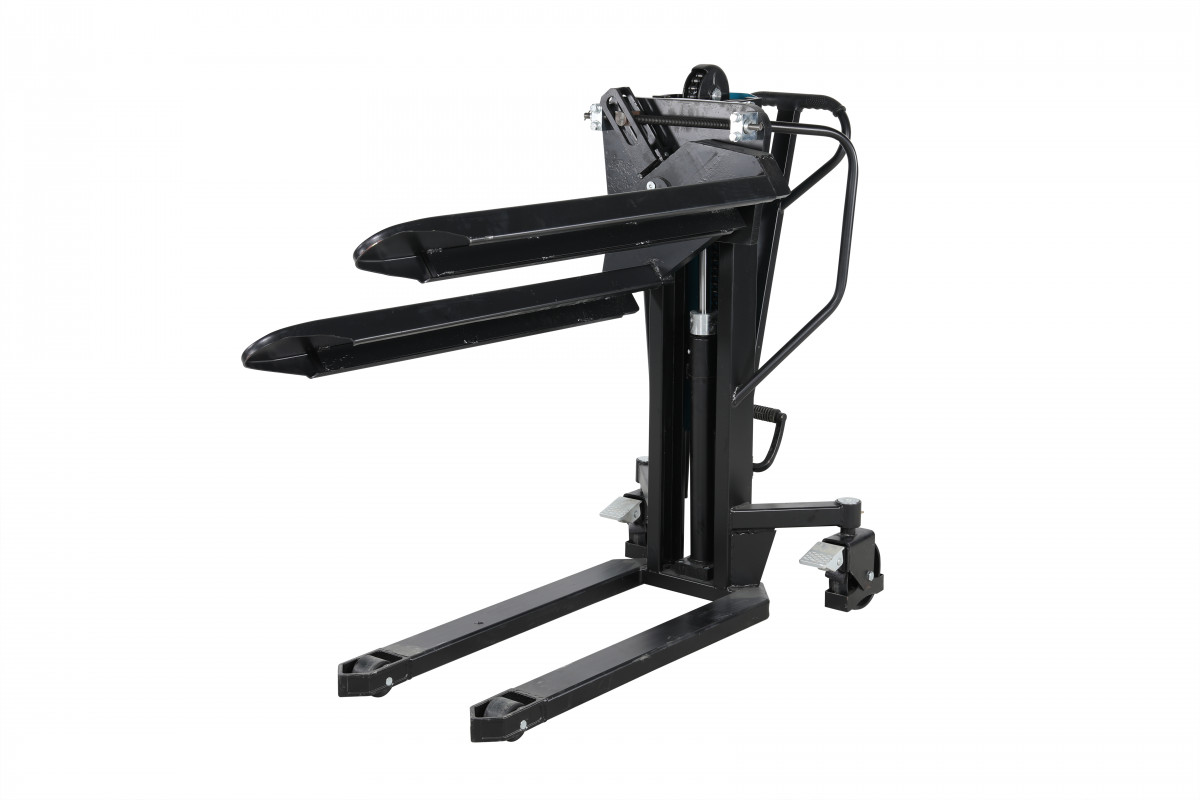

A compact stacker of a stable design with ergonomic tilt. The pallet is raised to the right work height and the sideways tilt makes the work comfortable and ergonomic. The tilt is manual. The design is very compact and is, therefore, suitable for cramped spaces. Brakes on both wheels.
