PL 2500 ST Stacker

Article no: 1840043251

Strong and robust stacker. Equipped with foot and hand pump for the best ergonomics. Ergonomically designed stacker with a foot pump, guards both the back and the shoulders. The stackers are built for professional use.

-Turn radius: 1380 mm

Lifting height

PDF

Capacity/kg:

1000

Length / Depth (mm):

1700

Width (mm):

800

Height (Min.) (mm):

1833

Height (mm):

3025

Fork length (mm):

1150

fork width (mm):

170

Fork height/thickness (mm):

Inner/other dimensions LxWxH (mm):

-Width between forks over outer edges: 550 mm
-Lift height: 80-2500 mm

Weight (kg):

280

Color:

Yellow (RAL 1028)/Black

Material:

Steel/Nylon wheels

Wheel data (Standard-/Steering wheels):

-Material: nylon
-Dimensions: 150 mm diameter, 50 mm width
-Equipped with foot brake

Wheel data (Fork wheels):

-Material: nylon
-Configuration: single
-Dimensions: 80 mm diameter, 70 mm width

Strong and robust stacker. Equipped with foot and hand pump for the best ergonomics. Ergonomically designed stacker with a foot pump, guards both the back and the shoulders. It is also possible to use the handle to pump up the forks. The stackers are built for professional use and supplied with a foot brake on both wheels.

MANUAL 43251 frigång.jpg

MANUAL 43251.pdf

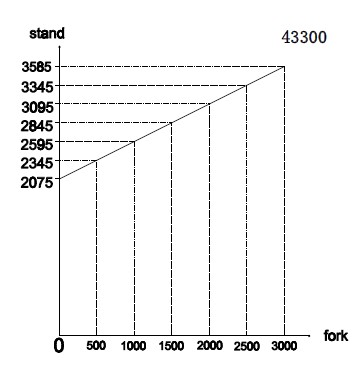

MANUAL 43300 frigång.jpg

MANUAL SFH technical specifications(new)2016-12-21.doc
