T 9, TIPPO 900 L.
Article no: 2011010090
Tipping containers are the industry’s best tool for waste sorting, waste and material handling. Designed, reinforced and powder coated to provide maximum safety and service life. Tipping containers are exceptionally suited to waste sorting. Available with the following options:
- -Net- tap- tight welding f. liquid separation 2512019046
- -Dense welding 2512019047
- -Grey flat lid 2511012111
- -Tippo 900 L. with High Lid 2012011110
- -Safety chain 2011010932
- -Fork lock by side 2512019040
- -Fork Spreading 2512019044
- -Customized color is available to special order
Volume
Color
- -Volume: 0,9 m3/765 liters
- -Material thickness: 2 mm
- -Fork tunnels: 1050 mm length, 230 mm width, 100 mm height
- -Distance between fork tunnels (inner edges): 160 mm
- -Total width over fork tunnels (outer edges): 630 mm
- -Inner dimensions, container: forward width 1140 mm, rear width 1050 mm, length of flat bottom 420 mm, length of forward angled bottom 1195 mm, total inner length (distance between top edges of the short sides) 1420 mm, total inner height 735 mm
- -Height from bottom of base to rear edge of container when tilting: 1300 mm
- -Hole pattern for wheel mounting: 80 x 105 mm, 4 holes, 12 mm diameter
- -Optional wheel sets are available for order.

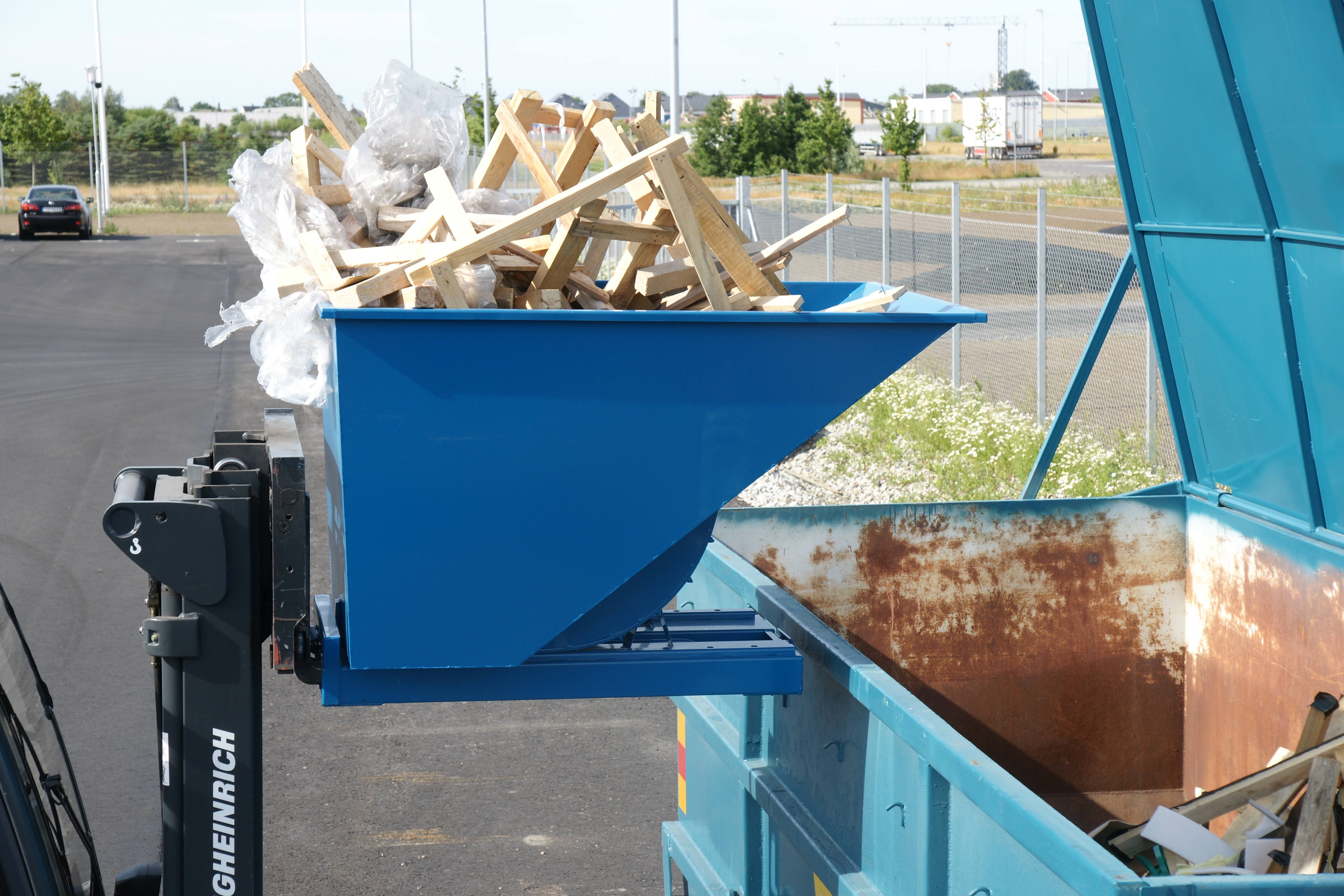

Tipping containers are the industry’s best tool for waste sorting, waste and material handling. Designed, reinforced and powder coated to provide maximum safety and service life. Spring pressure plate on the base frame for automatic emptying. Also with manual tipping. Other sizes are manufactured on request. TIPPO have reinforcements in the right places in order to deal with rough truck handling. Corner reinforcements raise the stiffness of the containers. Reinforced fork channels. The stop lug is well dimensioned in order to deal with the forces it can be exposed to. The automatic tipping function does not only provide greater efficiency, it also raises safety during emptying at greater heights as TIPPO cannot slide from the forks. Tipping containers are exceptionally suited to waste sorting. They can be supplied in colors as recommended by the public waste collection service.
CE Märkning CE-Tippo & Bottentömmare.doc
INSTR Bruksanvisning Tippo SE.doc
INSTR Tippo manual Eng.doc
MANUAL User manual Tilting skip.pdf
TECH Technical Data Containers English.pdf
TECH Teknisk Data Tippcontainers Swedish.pdf
TECH Tippo inside dimensions.PDF
